一、介绍
SSL（Secure Socket Layer：安全套接字层）利用数据加密、身份验证和消息完整性验证机制，为基于TCP等可靠连接的应用层协议提供安全性保证，是维护Client - Server之间加密通讯的一套安全协议。
SSL协议提供的功能主要有：
- 数据传输的机密性：利用对称密钥算法对传输的数据进行加密。
- 身份验证机制：基于证书利用数字签名方法对服务器和客户端进行身份验证，其中客户端的身份验证是可选的。
- 消息完整性验证：消息传输过程中使用MAC算法来检验消息的完整性。
如果用户的传输不是通过SSL的方式，那么其在网络中数据都是以明文进行传输的，而这给别有用心的人带来了可乘之机。所以，现在很多大型网站都开启了SSL功能。同样地，在数据库方面，如果客户端连接服务器获取数据不是使用SSL连接，那么在传输过程中，数据就有可能被窃取。
二、MySQL5.7 SSL配置和启用
1.安装时就配置SSL
在MySQL5.7版本安装初始化阶段，我们发现比之前版本（5.6）多了一步操作，而这个操作就是安装SSL的。
bin/mysqld --initialize --user=mysql
bin/mysql_ssl_rsa_setup
当运行完这个命令后，默认会在data_dir目录下生成以下pem文件，这些文件就是用于启用SSL功能的：
[root@nazeebodan mysql_data]# ll *.pem
-rw------- 1 mysql mysql 1679 Sep 13 10:13 ca-key.pem #CA私钥
-rw-r--r-- 1 mysql mysql 1107 Sep 13 10:13 ca.pem #自签的CA证书，客户端连接也需要提供
-rw-r--r-- 1 mysql mysql 1107 Sep 13 10:13 client-cert.pem #客户端连接服务器端需要提供的证书文件
-rw------- 1 mysql mysql 1679 Sep 13 10:13 client-key.pem #客户端连接服务器端需要提供的私钥文件
-rw------- 1 mysql mysql 1679 Sep 13 10:13 private_key.pem #私钥/公钥对的私有成员
-rw-r--r-- 1 mysql mysql 451 Sep 13 10:13 public_key.pem #私钥/公钥对的共有成员
-rw-r--r-- 1 mysql mysql 1107 Sep 13 10:13 server-cert.pem #服务器端证书文件
-rw------- 1 mysql mysql 1675 Sep 13 10:13 server-key.pem #服务器端私钥文件
2.如果没有在安装，在后期配置SSL的方法
- 重新执行mysql_ssl_rsa_setup
- 重启数据库
1.重新执行mysql_ssl_rsa_setup
[root@nazeebodan mysql]# pwd
/usr/local/mysql
[root@nazeebodan mysql]# bin/mysql_ssl_rsa_setup --datadir=/u01/mysql/mysql_data --user=mysql --uid=mysql
Generating a 2048 bit RSA private key
...............+++
..........+++
writing new private key to 'ca-key.pem'
-----
Generating a 2048 bit RSA private key
..............................................+++
..........+++
writing new private key to 'server-key.pem'
-----
Generating a 2048 bit RSA private key
..............................................................+++
....+++
writing new private key to 'client-key.pem'
-----
注意：上面的 --uid=mysql加上后，就不需要再去 chown -R mysql.mysql *.pem 了
2.重启数据库
[root@nazeebodan mysql]# service suremysql stop
Shutting down MySQL.. [ OK ]
[root@nazeebodan mysql]# service suremysql start
Starting MySQL.. [ OK ]
三、开启SSL
查看ssl的是否开启
mysql> show variables like 'port';
+---------------+-------+
| Variable_name | Value |
+---------------+-------+
| port | 3306 |
+---------------+-------+
1 row in set (0.00 sec)
mysql> show variables like "%ssl%";
+---------------+----------+
| Variable_name | Value |
+---------------+----------+
| have_openssl | DISABLED | --SSL被禁止
| have_ssl | DISABLED |
| ssl_ca | |
| ssl_capath | |
| ssl_cert | |
| ssl_cipher | |
| ssl_crl | |
| ssl_crlpath | |
| ssl_key | |
+---------------+----------+
9 rows in set (0.00 sec)
开启ssl
[root@nazeebodan mysql]# pwd
/usr/local/mysql
[root@nazeebodan mysql]# bin/mysql_ssl_rsa_setup --datadir=/u01/mysql/mysql_data --user=mysql --uid=mysql
Generating a 2048 bit RSA private key
...............+++
..........+++
writing new private key to 'ca-key.pem'
-----
Generating a 2048 bit RSA private key
..............................................+++
..........+++
writing new private key to 'server-key.pem'
-----
Generating a 2048 bit RSA private key
..............................................................+++
....+++
writing new private key to 'client-key.pem'
-----
注意：
上面的 --uid=mysql加上后，就不需要再去 chown -R mysql.mysql *.pem 了
[root@nazeebodan mysql]# service suremysql stop
Shutting down MySQL.. [ OK ]
[root@nazeebodan mysql]# service suremysql start
Starting MySQL.. [ OK ]
[root@nazeebodan mysql]# mysql -uroot -p123456
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 2
Server version: 5.7.23-log MySQL Community Server (GPL)
Copyright (c) 2000, 2018, Oracle and/or its affiliates. All rights reserved.
Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
mysql> show variables like "%ssl%";
+---------------+-----------------+
| Variable_name | Value |
+---------------+-----------------+
| have_openssl | YES |
| have_ssl | YES |
| ssl_ca | ca.pem |
| ssl_capath | |
| ssl_cert | server-cert.pem |
| ssl_cipher | |
| ssl_crl | |
| ssl_crlpath | |
| ssl_key | server-key.pem |
+---------------+-----------------+
9 rows in set (0.00 sec)
mysql>
四、SSL的使用
1.默认SSL是开启的
1.创建一个用户sure，并且让用户登录时不需要使用ssl，即不授予ssl的require
mysql> create user 'sure'@'%' identified by '123456';
Query OK, 0 rows affected (0.00 sec)
mysql>
mysql> grant all on *.* to 'sure'@'%';
Query OK, 0 rows affected (0.00 sec)
mysql> select * from mysql.user where user='sure'\G
*************************** 1. row ***************************
Host: %
User: sure
Select_priv: Y
Insert_priv: Y
Update_priv: Y
Delete_priv: Y
Create_priv: Y
Drop_priv: Y
Reload_priv: Y
Shutdown_priv: Y
Process_priv: Y
File_priv: Y
Grant_priv: N
References_priv: Y
Index_priv: Y
Alter_priv: Y
Show_db_priv: Y
Super_priv: Y
Create_tmp_table_priv: Y
Lock_tables_priv: Y
Execute_priv: Y
Repl_slave_priv: Y
Repl_client_priv: Y
Create_view_priv: Y
Show_view_priv: Y
Create_routine_priv: Y
Alter_routine_priv: Y
Create_user_priv: Y
Event_priv: Y
Trigger_priv: Y
Create_tablespace_priv: Y
ssl_type: -- 此处为空,标识没有收取ssl的权限
ssl_cipher:
x509_issuer:
x509_subject:
max_questions: 0
max_updates: 0
max_connections: 0
max_user_connections: 0
plugin: mysql_native_password
authentication_string: *6BB4837EB74329105EE4568DDA7DC67ED2CA2AD9
password_expired: N
password_last_changed: 2018-09-13 10:23:51
password_lifetime: NULL
account_locked: N
1 row in set (0.00 sec)
2.在其他服务器（root@lowa）上用这个新创建的用户登录
[root@lowa ~]# mysql -usure -p123456 -hnazeebodan
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 3
Server version: 5.7.23-log MySQL Community Server (GPL)
Copyright (c) 2000, 2018, Oracle and/or its affiliates. All rights reserved.
Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
mysql> \s
--------------
mysql Ver 14.14 Distrib 5.7.23, for linux-glibc2.12 (x86_64) using EditLine wrapper
Connection id: 3
Current database:
Current user: sure@172.18.53.223
SSL: Cipher in use is DHE-RSA-AES256-SHA --这个显示已经使用了ssl登录了
Current pager: stdout
Using outfile: ''
Using delimiter: ;
Server version: 5.7.23-log MySQL Community Server (GPL)
Protocol version: 10
Connection: nazeebodan via TCP/IP
Server characterset: utf8mb4
Db characterset: utf8mb4
Client characterset: utf8
Conn. characterset: utf8
TCP port: 3306
Uptime: 11 min 36 sec
Threads: 2 Questions: 15 Slow queries: 0 Opens: 114 Flush tables: 1 Open tables: 107 Queries per second avg: 0.021
--------------
mysql>
3.上面测试中我们没有使用--ssl参数，也是用了ssl登录的，原因是因为默认ssl登录是开启的
[root@nazeebodan ~]# mysql --help | grep ssl
--ssl-mode=name SSL connection mode.
--ssl Deprecated. Use --ssl-mode instead.
(Defaults to on; use --skip-ssl to disable.)
4.再次使用sure用户登录，并加上关闭ssl登录的参数
[root@lowa ~]# mysql -usure -p123456 -hnazeebodan --skip-ssl
mysql: [Warning] Using a password on the command line interface can be insecure.
WARNING: --ssl is deprecated and will be removed in a future version. Use --ssl-mode instead.
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 4
Server version: 5.7.23-log MySQL Community Server (GPL)
Copyright (c) 2000, 2018, Oracle and/or its affiliates. All rights reserved.
Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
mysql> \s
--------------
mysql Ver 14.14 Distrib 5.7.23, for linux-glibc2.12 (x86_64) using EditLine wrapper
Connection id: 4
Current database:
Current user: sure@172.18.53.223
SSL: Not in use --这里显示已经禁用了ssl
Current pager: stdout
Using outfile: ''
Using delimiter: ;
Server version: 5.7.23-log MySQL Community Server (GPL)
Protocol version: 10
Connection: nazeebodan via TCP/IP
Server characterset: utf8mb4
Db characterset: utf8mb4
Client characterset: utf8
Conn. characterset: utf8
TCP port: 3306
Uptime: 13 min 28 sec
Threads: 2 Questions: 20 Slow queries: 0 Opens: 114 Flush tables: 1 Open tables: 107 Queries per second avg: 0.024
--------------
mysql>
5.修改用户，让用户必须使用ssl登录
mysql> alter user 'sure'@'%' require ssl;
Query OK, 0 rows affected (0.00 sec)
mysql> flush privileges;
Query OK, 0 rows affected (0.00 sec)
6.再次尝试登录，发现如果加上忽略ssl的选项，登录会报错：
[root@lowa ~]# mysql -usure -p123456 -hnazeebodan --skip-ssl
mysql: [Warning] Using a password on the command line interface can be insecure.
WARNING: --ssl is deprecated and will be removed in a future version. Use --ssl-mode instead.
ERROR 1045 (28000): Access denied for user 'sure'@'172.18.53.223' (using password: YES)
7.不忽略ssl登录，登录成功
[root@lowa ~]# mysql -usure -p123456 -hnazeebodan --skip-ssl
mysql: [Warning] Using a password on the command line interface can be insecure.
WARNING: --ssl is deprecated and will be removed in a future version. Use --ssl-mode instead.
ERROR 1045 (28000): Access denied for user 'sure'@'172.18.53.223' (using password: YES)
[root@lowa ~]# mysql -usure -p123456 -hnazeebodan
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 6
Server version: 5.7.23-log MySQL Community Server (GPL)
Copyright (c) 2000, 2018, Oracle and/or its affiliates. All rights reserved.
Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
mysql> \s
--------------
mysql Ver 14.14 Distrib 5.7.23, for linux-glibc2.12 (x86_64) using EditLine wrapper
Connection id: 6
Current database:
Current user: sure@172.18.53.223
SSL: Cipher in use is DHE-RSA-AES256-SHA
Current pager: stdout
Using outfile: ''
Using delimiter: ;
Server version: 5.7.23-log MySQL Community Server (GPL)
Protocol version: 10
Connection: nazeebodan via TCP/IP
Server characterset: utf8mb4
Db characterset: utf8mb4
Client characterset: utf8
Conn. characterset: utf8
TCP port: 3306
Uptime: 20 min 52 sec
Threads: 2 Questions: 27 Slow queries: 0 Opens: 115 Flush tables: 1 Open tables: 108 Queries per second avg: 0.021
2.使用证书认证登录
1.创建用户sure_x509，登录时需要x509的证书
mysql> create user 'sure_x509'@'%' identified by '123456' require x509;
Query OK, 0 rows affected (0.00 sec)
mysql> grant all on *.* to 'sure_x509'@'%';
Query OK, 0 rows affected (0.00 sec)
mysql> flush privileges;
Query OK, 0 rows affected (0.01 sec)
mysql> select * from mysql.user where user='sure_x509'\G
*************************** 1. row ***************************
Host: %
User: sure_x509
Select_priv: Y
Insert_priv: Y
Update_priv: Y
Delete_priv: Y
Create_priv: Y
Drop_priv: Y
Reload_priv: Y
Shutdown_priv: Y
Process_priv: Y
File_priv: Y
Grant_priv: N
References_priv: Y
Index_priv: Y
Alter_priv: Y
Show_db_priv: Y
Super_priv: Y
Create_tmp_table_priv: Y
Lock_tables_priv: Y
Execute_priv: Y
Repl_slave_priv: Y
Repl_client_priv: Y
Create_view_priv: Y
Show_view_priv: Y
Create_routine_priv: Y
Alter_routine_priv: Y
Create_user_priv: Y
Event_priv: Y
Trigger_priv: Y
Create_tablespace_priv: Y
ssl_type: X509
ssl_cipher:
x509_issuer:
x509_subject:
max_questions: 0
max_updates: 0
max_connections: 0
max_user_connections: 0
plugin: mysql_native_password
authentication_string: *6BB4837EB74329105EE4568DDA7DC67ED2CA2AD9
password_expired: N
password_last_changed: 2018-09-13 10:36:14
password_lifetime: NULL
account_locked: N
1 row in set (0.00 sec)
mysql>
2.不忽略ssl登录，发现登录失败
[root@lowa ~]# mysql -usure_x509 -p123456 -hnazeebodan
mysql: [Warning] Using a password on the command line interface can be insecure.
ERROR 1045 (28000): Access denied for user 'sure_x509'@'172.18.53.223' (using password: YES)
[root@lowa ~]#
3.将证书传到相应的登录节点
[root@nazeebodan mysql_data]# scp client-cert.pem client-key.pem root@lowa:/tmp
client-cert.pem 100% 1107 2.7MB/s 00:00
client-key.pem 100% 1679 3.3MB/s 00:00
[root@nazeebodan mysql_data]#
4.再次尝试登录，登录成功
[root@lowa ~]# mysql -usure_x509 -p123456 -hnazeebodan --ssl-cert=/tmp/client-cert.pem --ssl-key=/tmp/client-key.pem
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 8
Server version: 5.7.23-log MySQL Community Server (GPL)
Copyright (c) 2000, 2018, Oracle and/or its affiliates. All rights reserved.
Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
mysql> \s
--------------
mysql Ver 14.14 Distrib 5.7.23, for linux-glibc2.12 (x86_64) using EditLine wrapper
Connection id: 8
Current database:
Current user: sure_x509@172.18.53.223
SSL: Cipher in use is DHE-RSA-AES256-SHA --这里使用了SSL及证书X509了
Current pager: stdout
Using outfile: ''
Using delimiter: ;
Server version: 5.7.23-log MySQL Community Server (GPL)
Protocol version: 10
Connection: nazeebodan via TCP/IP
Server characterset: utf8mb4
Db characterset: utf8mb4
Client characterset: utf8
Conn. characterset: utf8
TCP port: 3306
Uptime: 28 min 8 sec
Threads: 2 Questions: 37 Slow queries: 0 Opens: 115 Flush tables: 1 Open tables: 108 Queries per second avg: 0.021
五、使用SSL前后性能对比(QPS)
服务器配置：CPU:32核心 内存:128G 磁盘：SSD
为了尽量准确测试QPS，采用全内存查询，按照并发线程数分类：1线程、4线程、8线程、16线程、24线程、32线程、64线程；

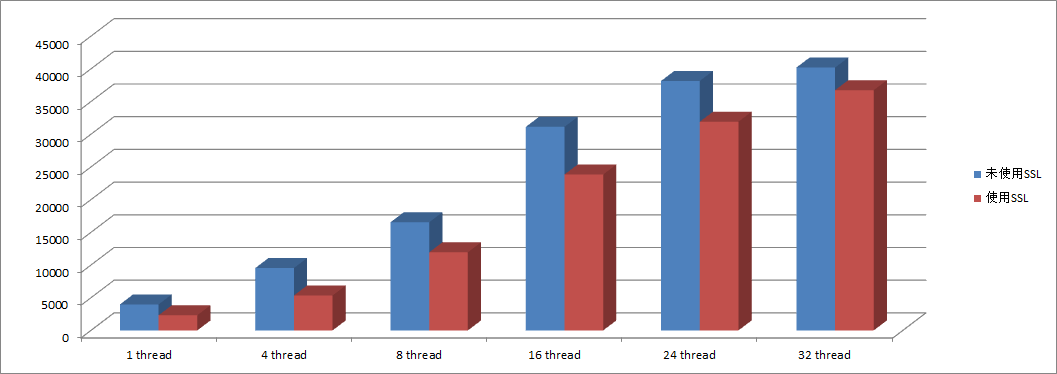

具体数据如下：
从测试数据可以发现，开启SSL后，数据库QPS平均降低了23%左右，相对还是比较影响性能的。从SSL实现方式来看，建立连接时需要进行握手、加密、解密等操作。所以耗时基本都在建立连接阶段，这对于使用短链接的应用程序可能产生更大的性能损耗，比如采用PHP开发。不过如果使用连接池或者长连接可能会好许多。
六、总结
- MySQL5.7默认是开启SSL连接，如果强制用户使用SSL连接，那么应用程序的配置也需要明确指定SSL相关参数，否则程序会报错。
- 虽然SSL方式使得安全性提高了，但是相对地使得QPS也降低23%左右。所以要谨慎选择：
- 对于非常敏感核心的数据，或者QPS本来就不高的核心数据，可以采用SSL方式保障数据安全性；
- 对于采用短链接、要求高性能的应用，或者不产生核心敏感数据的应用，性能和可用性才是首要，建议不要采用SSL方式；
